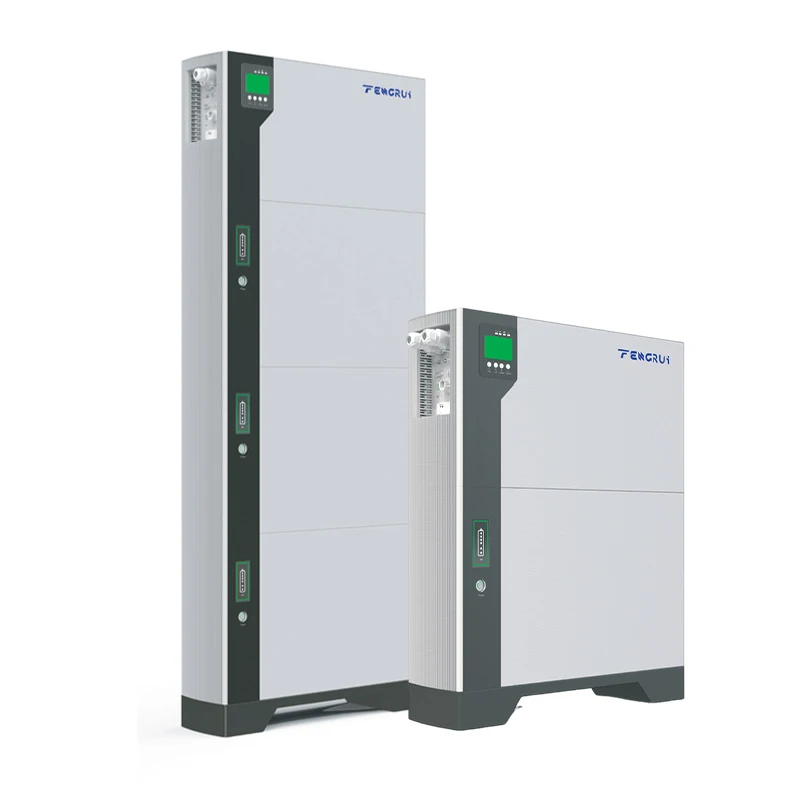

51.2V 102AH-500AH Home Energy Storage Battery Module 5-15KWh System with 5.12KWH-15.36KWH Storage

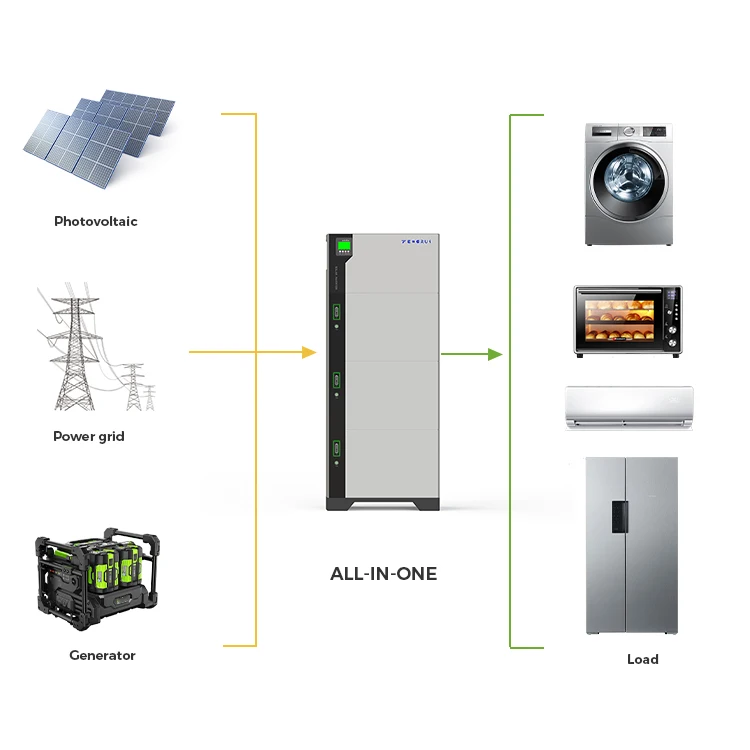

51.2V 102AH-500AH LiFePO4 home battery, scalable 5-15KWh system (5.12-15.36KWh storage). Smart BMS ensures safety & efficiency, compatible with solar/grid. Long lifespan, eco-friendly, perfect for on/off-grid homes.
- Overview
- Recommended Products
Products Description
Specifications |
Parameters |
||||
Product composition |
Inverter+PACK+Base |
||||
Battery module specifications |
51.2V102AH |
||||
IP rating |
IP21 |
||||

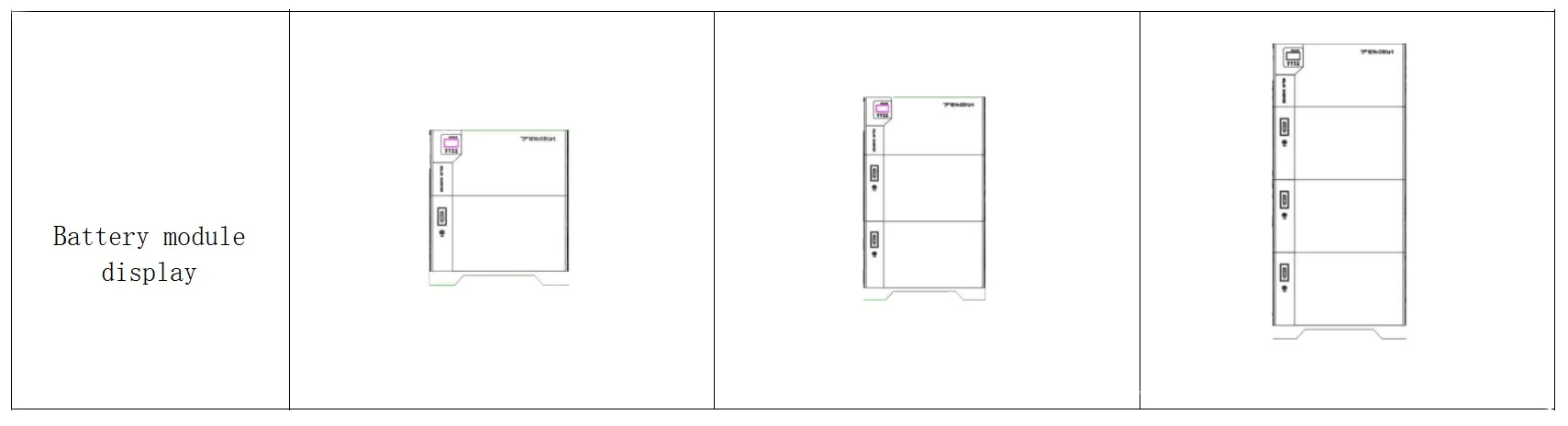

Number of battery modules |
1 |
2 |
3 |
||
Total battery capacity (KWH) |
5.12 |
10.24 |
15.36 |
||
Dimensions
(W * H * D)/mm
|
634*771*170 |
634*1146*170 |
634*1521*170 |
||
Weight/KG |
71.4 |
112.8 |
174.2 |
||
Communication method |
CAN/485 |
||||
MPPT voltage range/VDC |
150-500V |
Input voltage/AC |
90~280V(Household Electric Appliances) 170~280V(computer equipment) |
||
output voltage |
208/220/230/240VAC |
Maximum photovoltaic power |
5000W |
||
output power |
5000W |
Number of cycles |
4000~6000 |
||
Maximum discharge current/DC |
100A |
||||
Grid connected/off grid |
|||||
Wiring method |
individual |
||||
Easy installation and user-friendly operation.
Battery module supports connecting up to 15 units in parallel for a combined capacity of 141.3kWh.
Inverter module can be expanded to 6 units, supporting single-phase or three-phase configurations up to 66kW.
Supports remote monitoring and control via APP/PC.
Inverter module options:
European standard (5.6kW/8kW/11kW, 230V)
American standard (6.5kW 110V / 12kW split-phase 110V/220V).
Battery module supports connecting up to 15 units in parallel for a combined capacity of 141.3kWh.
Inverter module can be expanded to 6 units, supporting single-phase or three-phase configurations up to 66kW.
Supports remote monitoring and control via APP/PC.
Inverter module options:
European standard (5.6kW/8kW/11kW, 230V)
American standard (6.5kW 110V / 12kW split-phase 110V/220V).
Company Profile
FAQ
FAQ
If you have any questions, feel free to contact us.
Q:Do you have MOQ ?
Q: What kind of company are you?
A: Our company was established in 2022 and is a high-tech enterprise specializing in the research and development, production, sales, and service of energy storage equipment. We are committed to providing global customers with energy storage products that are high in efficiency, reliability, and longevity, meeting the energy storage needs of various scenarios.
Q: What are the main businesses of your company?
A: Our business covers the research and development, production, and sales of energy storage equipment, as well as after-sales services. Our products are widely used in residential energy storage, commercial energy storage, industrial energy storage, and renewable energy storage, offering customized energy storage solutions to customers.
Q. Can I print LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. What services can provide?
A:Accepted DeliveryTerms: DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,CAD;
Accepted Payment Type: T/T,D/P D/A,Credit Card,PayPal,Cash;
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
