16kWh 48V 51.2V 314Ah Low-Voltage Mobile Energy Storage LiFePO4 Battery For Home

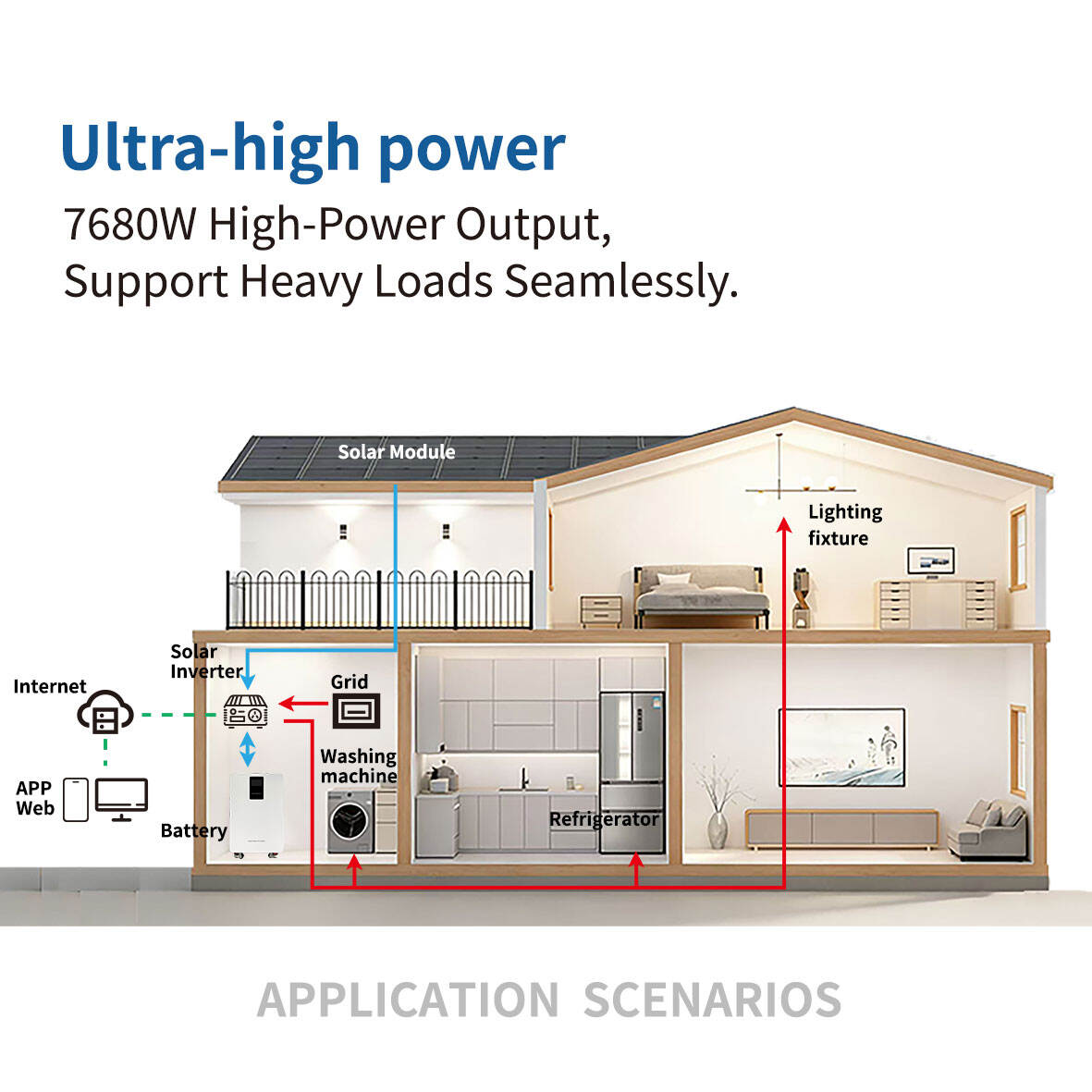

Introducing the FENGRUI FN310, with grade A solar lithium iron phosphate battery cell, built-in BMS with 95% depth of discharge. It is suitable for providing night-time irrigation power to agricultural greenhouses, serving as temporary clean power on construction sites, or expanding existing PV systems to increase self-consumption.
- Overview
- Recommended Products
Key Features:
● Battery Chemistry
Employing Lithium Iron Phosphate (LiFePO4) technology, known for its safety and longevity, with over 6000 cycles at 80% Depth of Discharge (DoD).
● Wide Operating Conditions
Charge from 0℃ to 55℃ and discharge in extreme conditions from -10℃ to 55℃, ensuring efficiency in varying climates.
● Large Capacity

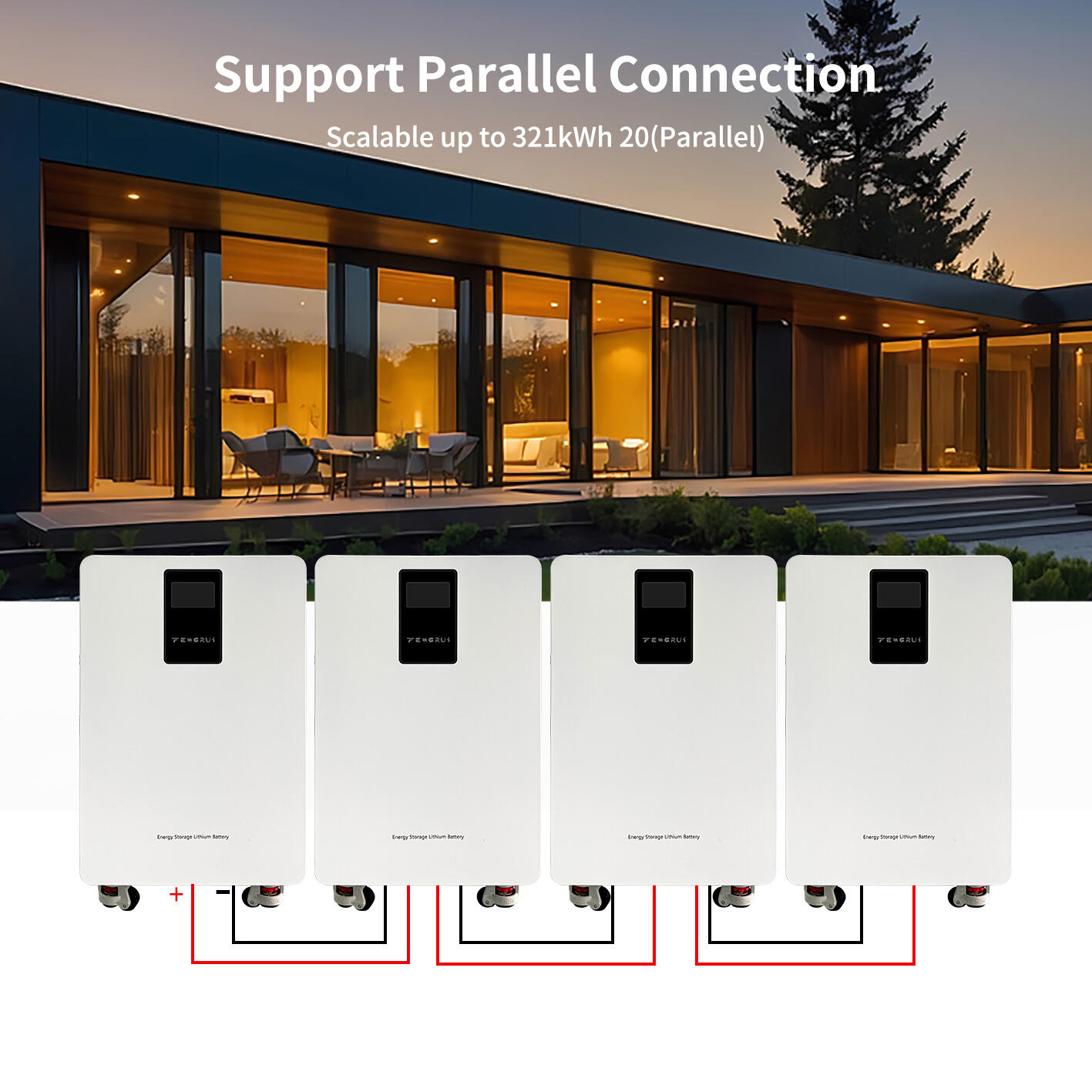

16 kWh per unit with the ability to connect up to 20 units in parallel, providing scalability up to 320 kWh, perfect for medium larger storage energy needs.
● Standard Communication Interface
Supports CAN/RS485 communication for easy integration with inverters and energy management systems.
● Modern Design
Compact flooring-standing design, wheeled base allows easy indoor/outdoor mobility and flexible placement.
Specification of FN310
| Battery Data | |
| Cell Chemistry | LFP |
| Pack Configuration | 1P16S |
| Rated Energy (kWh) | 16kWh |
| Rated Capacity (Ah) | 314Ah |
| Rated Voltage (V) | 51.2V |
| Operating Voltage Range (VDC) | 44.8~57.6V |
| Max. Continuous Charge/ Discharge Current (A) | 100A |
| BMS Communication | CAN/RS485 |
| Depth of Discharge (%) | 95% |
| General Data | |

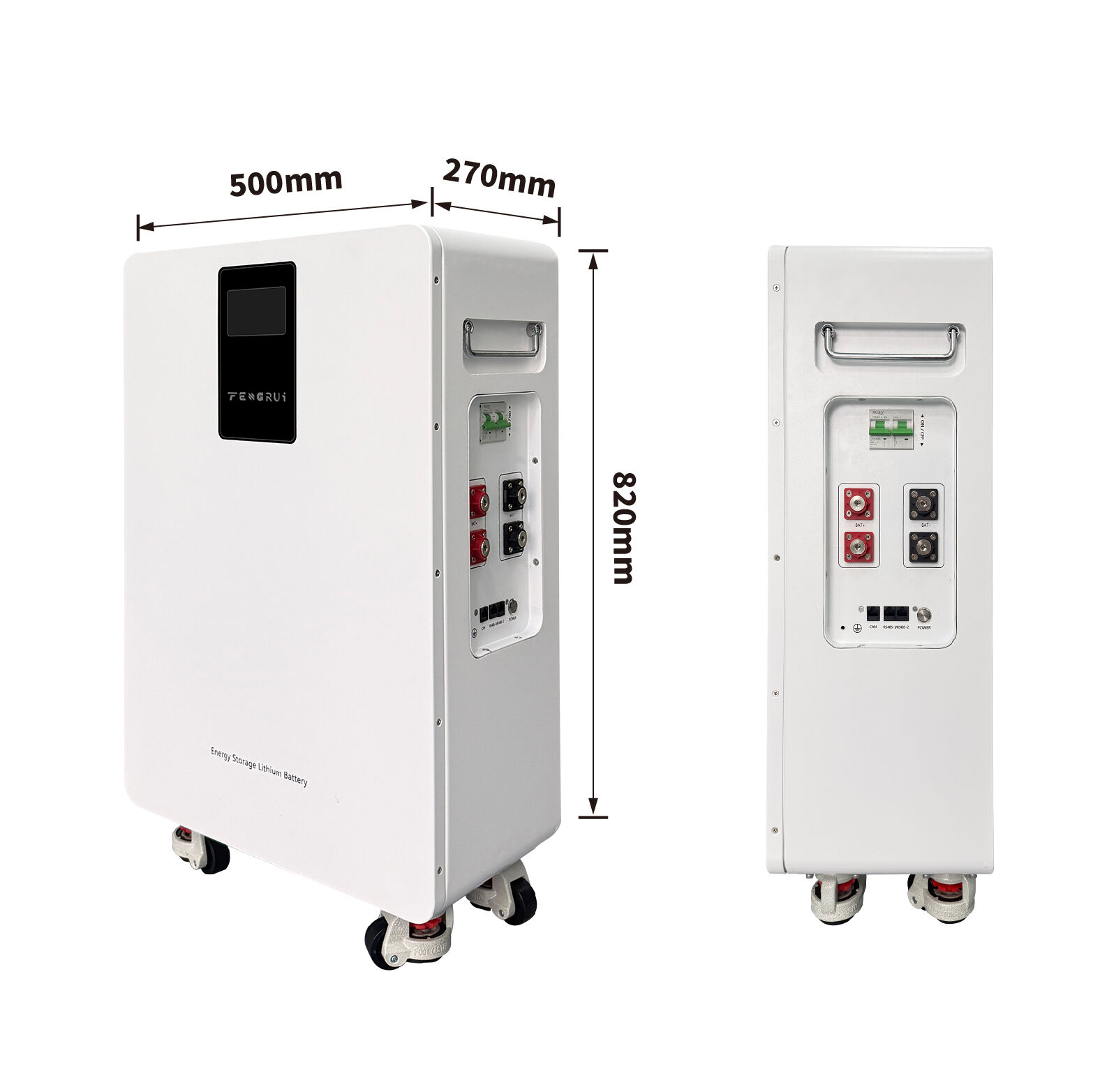

| Dimensions (L*W*H) (mm) | 500×270×820 |
| Packaging Dimensions (L*W*H) (mm） | 540×310×860 |
| Weight (kg) | 118kg |
| Packaging Weight (kg) | 122kg |
| Altitude (m) | 4,000m (Derating above 2,000m) |
| Display | LCD |
| Safety Protection | Over Charge/Discharge Protection, High/Low Temperature Protection, Over Current Protection, Short Circuit Protection, Cell Voltage Balancing. |
| IP Rating | IP21 |
| Operating Temperature (℃) | Charge 0~55℃/ Discharge -10~55℃ |
| Relative Humidity | 0 ~ 95%, Non-condensing |
| Cycle Life | 6,000 Cycles |
| Installation Method | Floor-Standing (with Wheels) |
| Certifications | CE, RoHS, UN38.3 |
