5.22kWh 51.2V Standard Rack-mounted LiFePO4 Storage Battery Pack

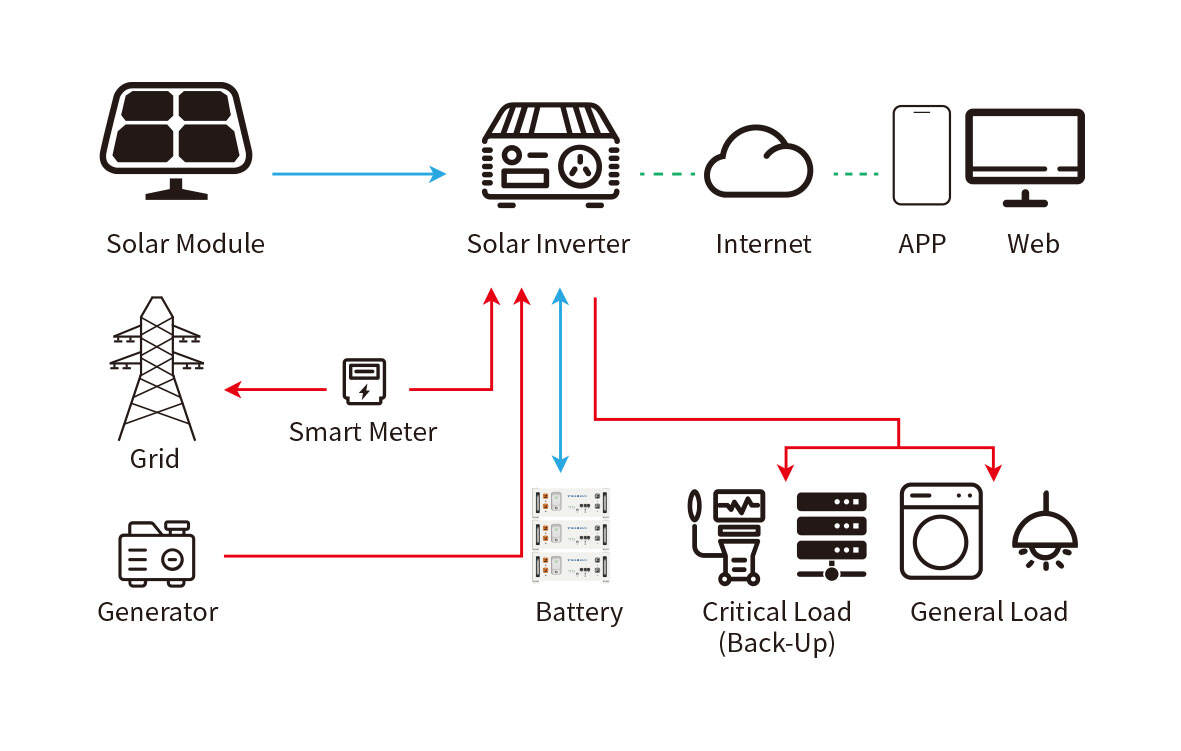

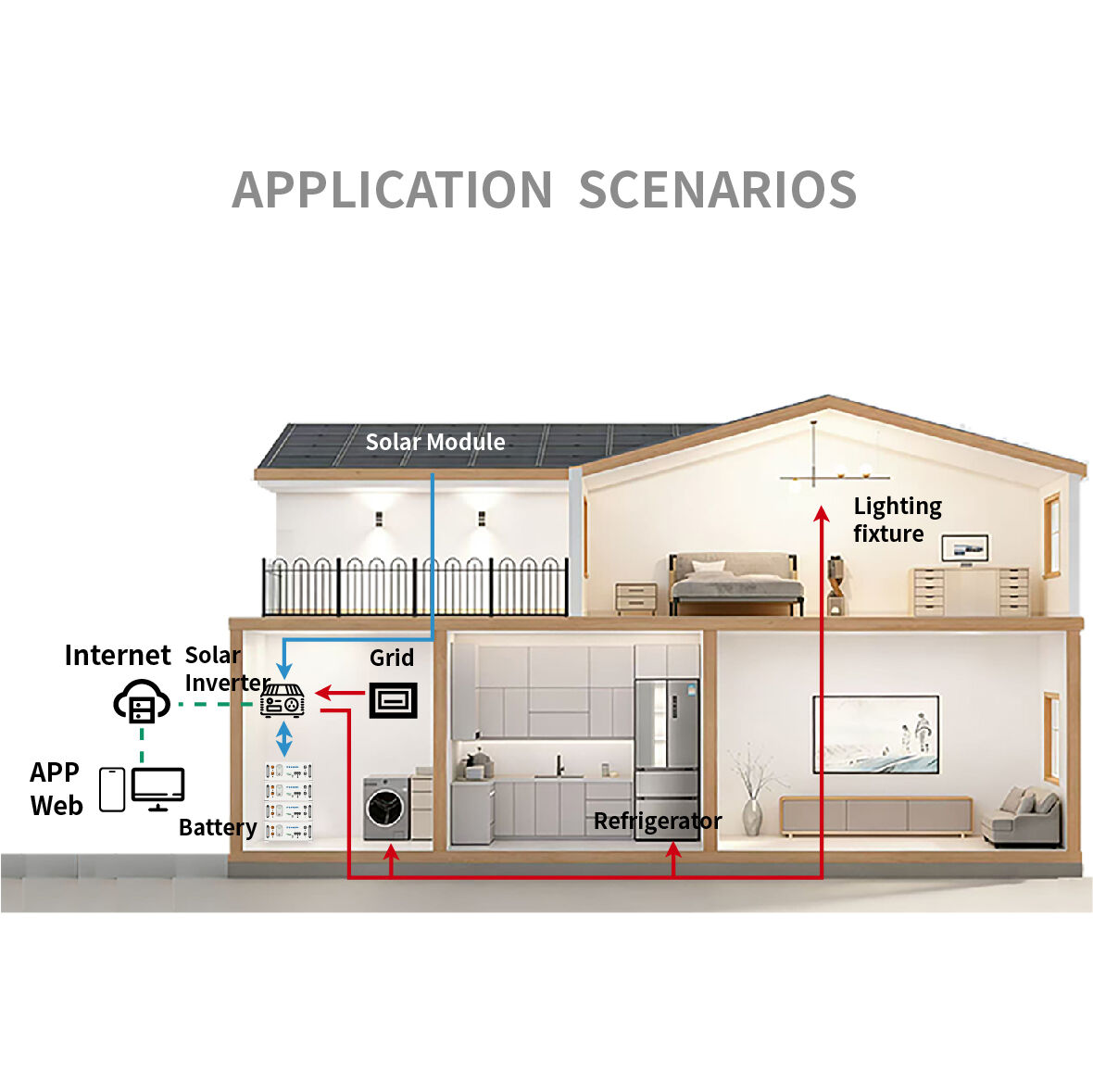

Introducing the FENGRUI FJ48100, featuring a standard rack-mounted design, each module offers 5.22kWh and supports flexible series/parallel expansion. It easily integrates into storage cabinets or UPS systems to provide reliable, scalable modular energy storage for telecom base stations, microgrids, or home battery walls.

Overview
Recommended Products

Key Features:

● Battery Cell
Uses grade A lithium iron phosphate battery 102Ah cells for high energy density, with over 6000 cycles at 80% Depth of Discharge (DoD), delivering 5.22kWh in a compact size.
● High Depth of Discharge
Support 90% DoD, maximizing usable capacity and storage economics.
● Wide Charge/Discharge Temperature
Charge 0-55℃, discharge -10-55℃, suitable for various climates, reliable year-round.

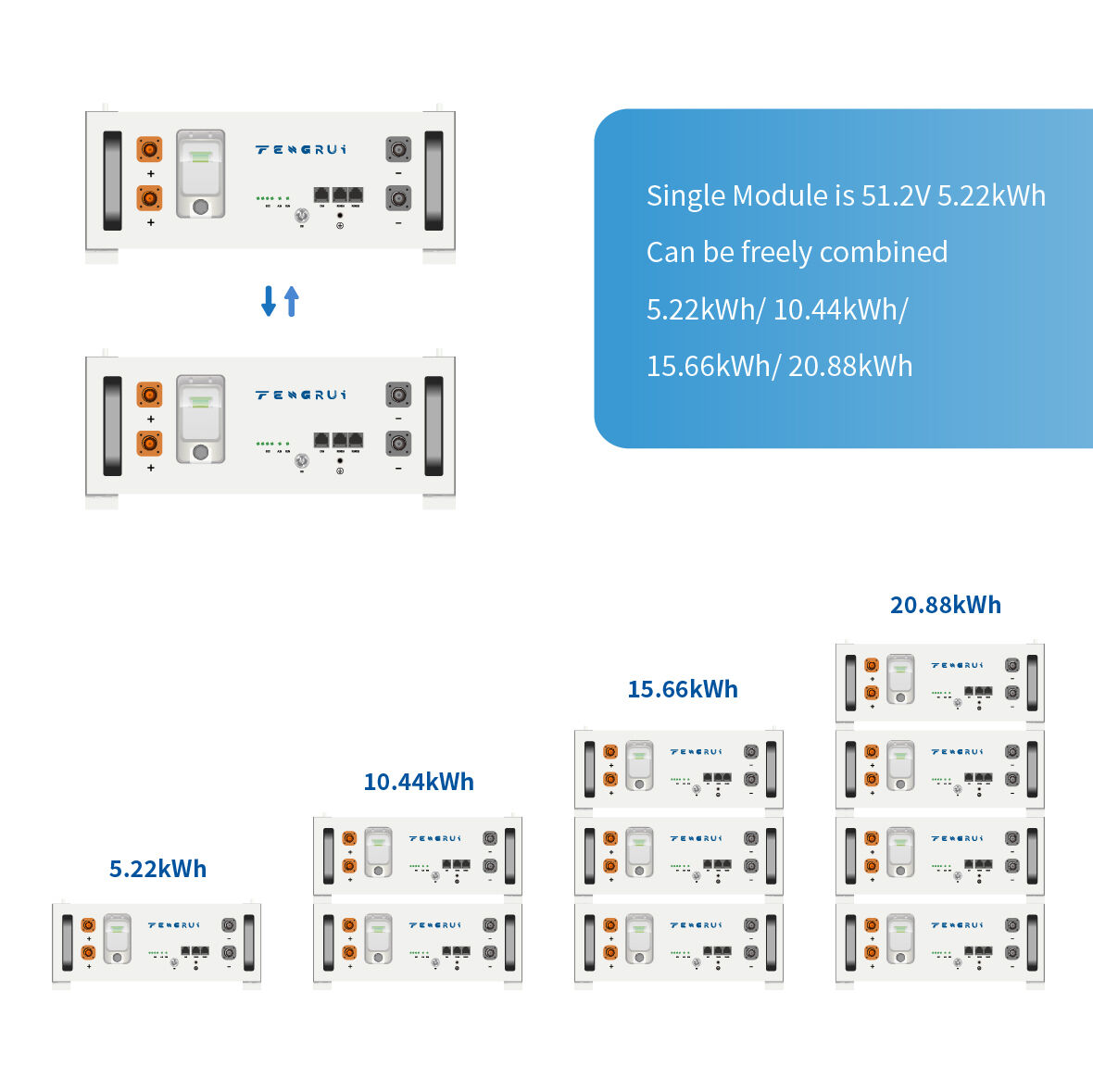

● Support Series/Parallel Expansion
Flexible series/parallel configuration for custom expansion of system voltage and capacity.
● Smart Communication
Supports CAN/RS485 communication for integration with energy management systems, enabling remote monitoring and O&M to improve management efficiency.

Specification of FJ48100

Battery Data
Cell Chemistry	LFP
Pack Configuration	1P16S
Rated Energy (kWh)	5.22kWh
Rated Capacity (Ah)	102Ah
Rated Voltage (V)	51.2V
Operating Voltage Range (VDC)	44.8-58.4V
Max. Continuous Charge/ Discharge Current (A)	100A
BMS Communication	CAN/RS485
Depth of Discharge (%)	90%
Serial and Parallel Quantities	2-10 Pcs
General Data
Dimensions (LWH ) (mm)	590×390×145
Packaging Dimensions (LWH) (mm)	694×476×256
Weight (kg)	~46.8kg
Packaging Weight (kg)	~48.8kg
Altitude (m)	< 4,000m (Derating above 2,000m)
Safety Protection	Over Charge/Discharge Protection, High/Low Temperature Protection, Over Current Protection, Short Circuit Protection, Cell Voltage Balancing.
IP Rating	IP21
Operating Temperature (℃)	Charge 0~55℃/ Discharge -10~55℃
Relative Humidity	0 ~ 95%, Non-condensing
Cycle Life	6,000 Cycles
Installation Method	Rack-Mounted
Certifications	CE, RoHS, UN38.3
