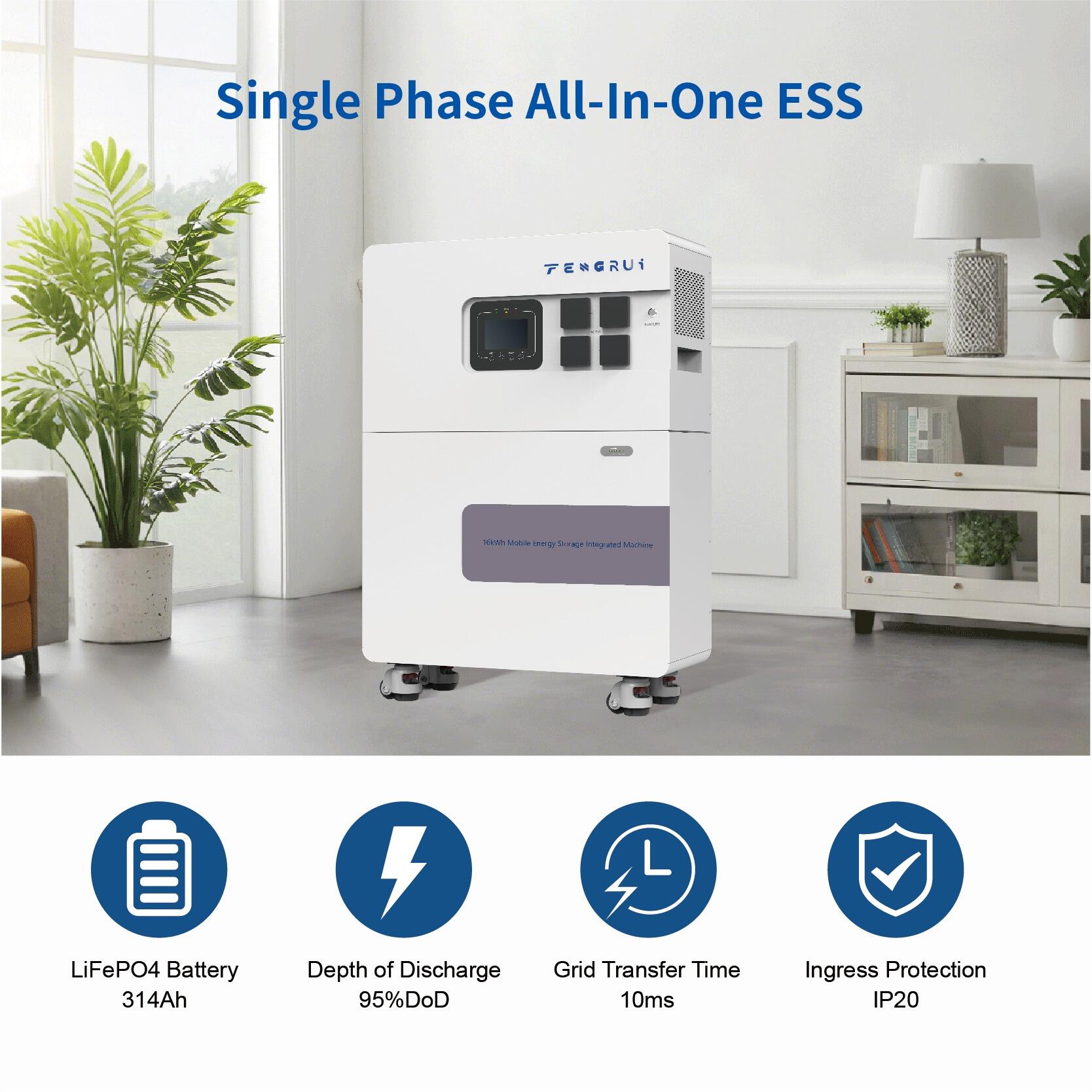

16kWh Single Phase PV-Storage-Charging All-In-One Mobile Residential ESS
Introducing the FENGRUI MESS-10-16K, this wheeled low-voltage integrated unit combines solar, storage, and EV charging, with 16kWh per unit expandable by connecting up to 10 in parallel. Its wheels and plug-and-play design enable quick deployment to provide clean mobile power and charging for homes, outdoor events, or pop-up shops.
- Overview
- Recommended Products
Key Features:
● Battery Cell
Uses grade A lithium iron phosphate battery 314Ah cells for high energy density, with over 6000 cycles at 80% Depth of Discharge (DoD).
● Dual MPPT
Equipped with dual MPPT, max PV input 12kW, voltage range 90-450V, improving PV utilization and yield.
● Fast Grid Transfer
Grid transfer time 10ms, ensuring uninterrupted operation of important appliances.

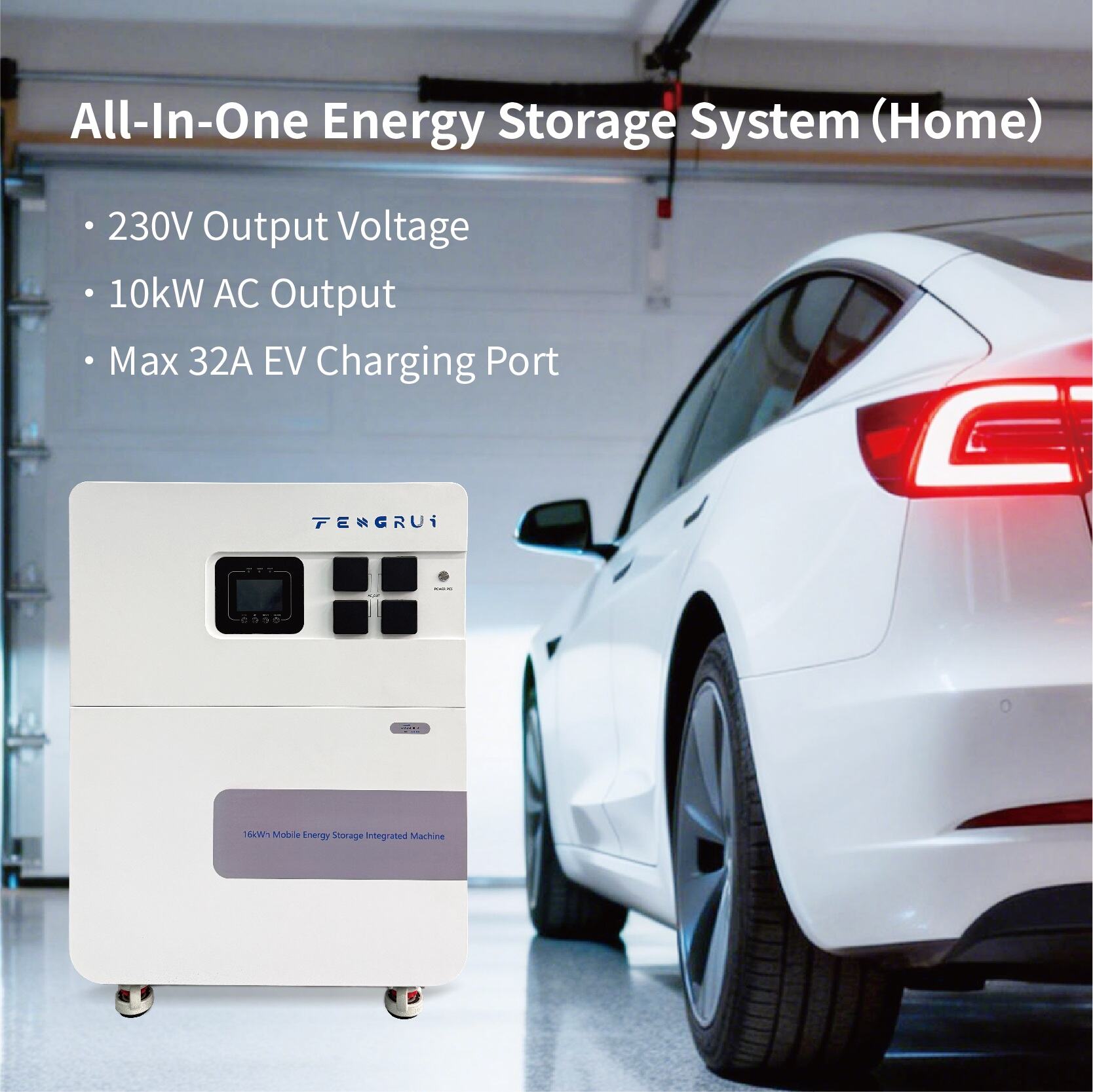

● EV Charging Support
Integrated 32A EV charging port supports electric vehicle charging, enabling solar-storage-EV integration.
● Wide Operating Temperature
From minus 10℃ to 55℃, suitable for various climates, reliable year-round.
● Support Series/Parallel Expansion
Flexible parallel configuration for custom expansion of system voltage and capacity, support 10 units in parallel to 160kWh.
Specification of MESS-10-16K
| Battery Data | |
| Cell Chemistry | LFP 314Ah |
| Rated Energy (kWh) | 16kWh |
| Expandable Capacity | 16-160 kWh (1-10 Battery Packs) |
| Pack Configuration | 16S1P Per Pack |
| Max. Output Current (A) | 200A |
| Rated Voltage (V) | 51.2V |
| Operating Voltage Range (VDC) | 44.8V-57.6V |
| PV Input | |
| Max. PV Input Power (kW) | 6,000W + 6,000W (Dual MPPT) |
| MPPT Voltage Range (V) | 90-450 VDC |
| Number of MPPTs (Pcs) | 2 |
| Max. PV Input Current per MPPT (A) | 22A |
| AC Input & Output | |

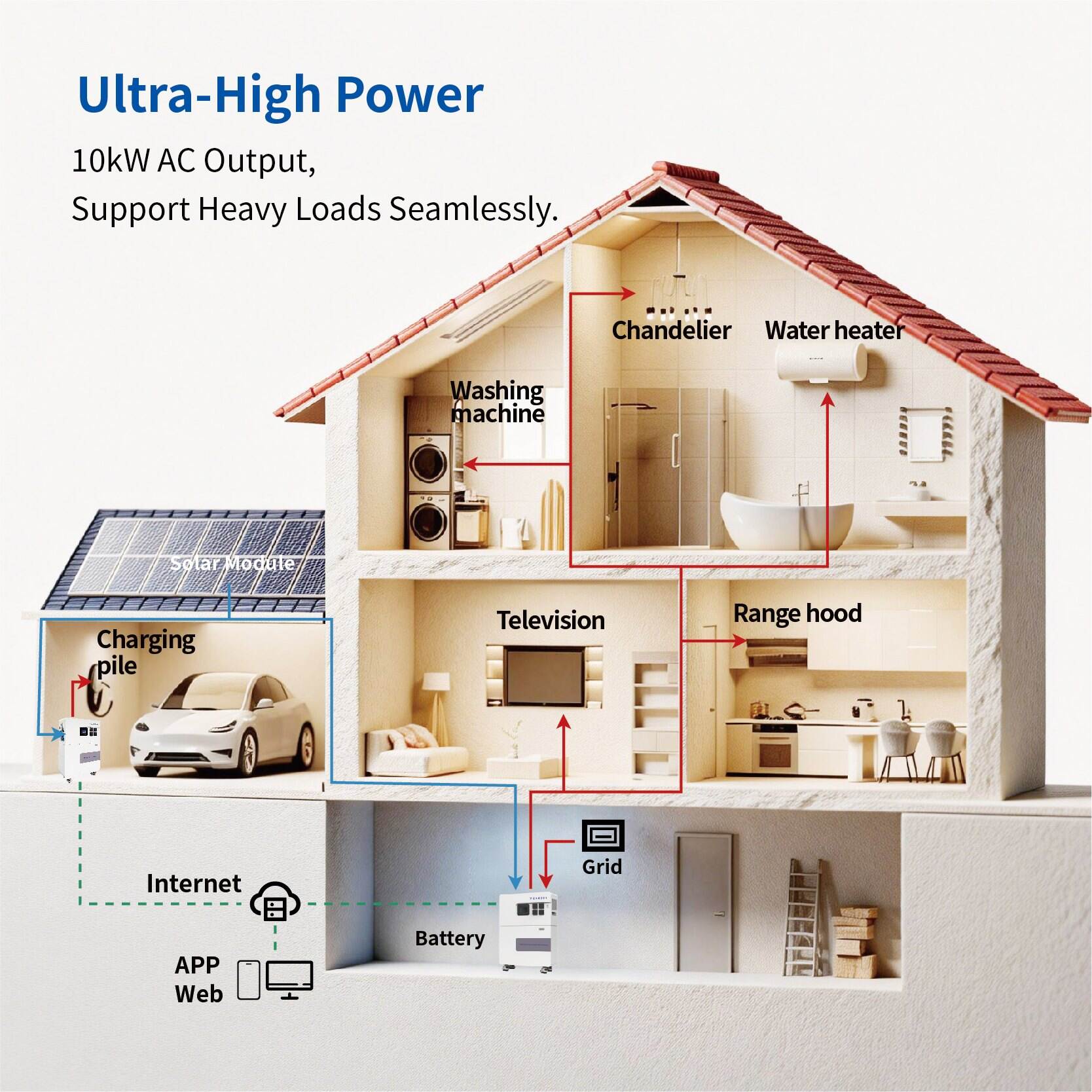

| Rated Input/ Output Power (kW) | 10 kW |
| Expandable Capacity (kW) | 10-60 kW (1-6 Inverters) |
| Rated Input/ Output Voltage (V) | 220V/ 230V/ 240V (Adjustable) |
| Rated AC Frequency (Hz) | 50Hz/ 60Hz |
| Grid Transfer Time (ms) | 10ms |
| Grid Connection | Single Phase |
| EV Charging Port (A) | 32A Max |
| General Data | |
| Display | LCD Display |
| IP Rating | IP20 |
| Altitude (m) | 4,000m (Derating above 2,000m) |
| Operating Temperature (℃) | -10°C to 55°C (Derating above 45°C) |
| Relative Humidity | 5% to 95%（Conformal Coating Protection） |
| Cycle Life | 6,000 Cycles |
| Safety Protection | Reverse Polarity, PV Night Reverse-Current, Over/Under Voltage, Short Circuit, Overload, Over Current, Over Temperature, Parallel Connection Error, Synchronization Signal Fault Protection. |
| BMS Communication | USB/RS485(/WiFi/GPRS)/Dry Contact |
| Installation Method | Plug & Play |

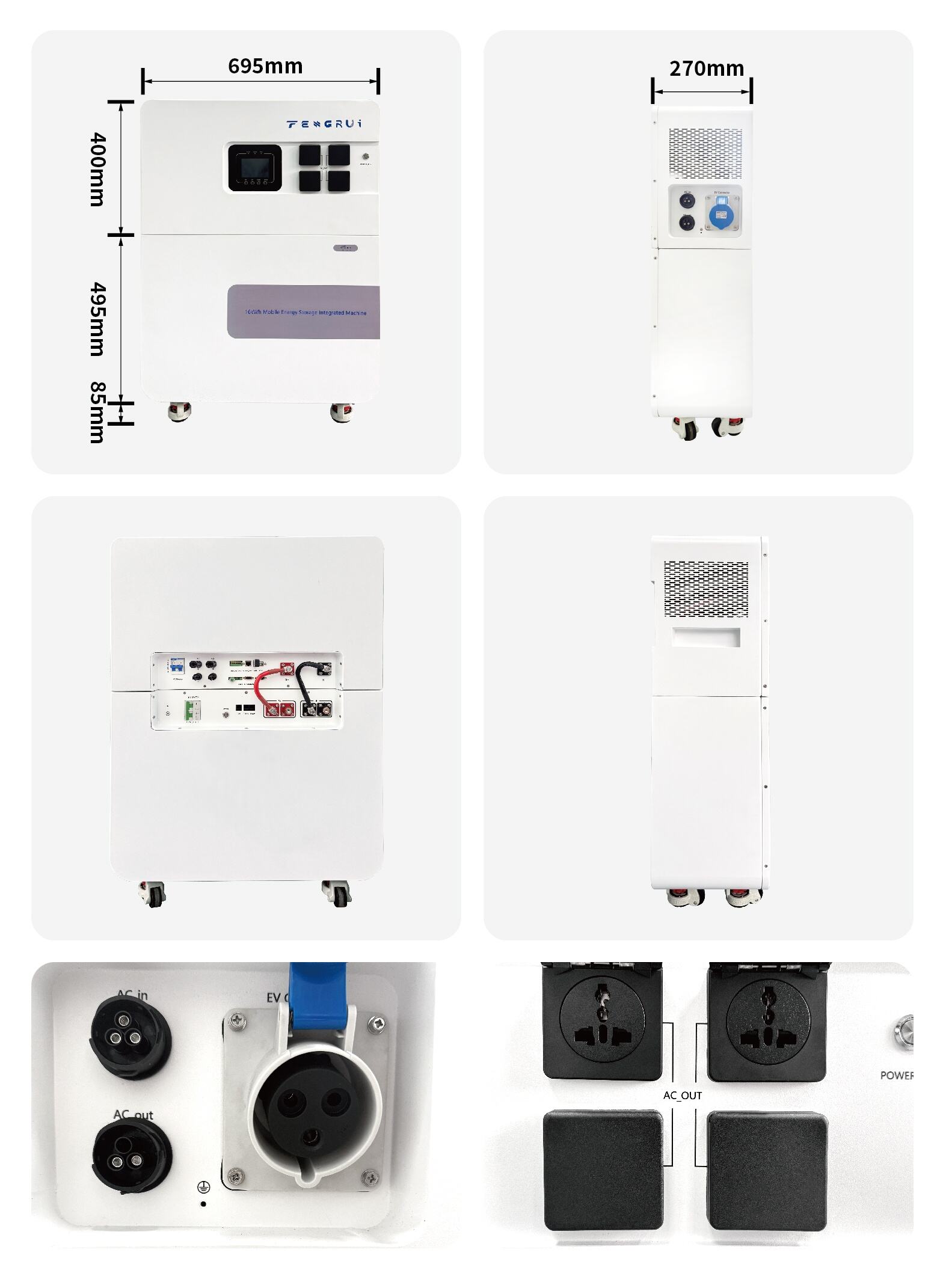

| Inverter Dimensions (mm) | L695 × W270 × H400 |
| Battery Pack Dimensions (mm) | L695 × W270 × H495 |
| Wheel Height (mm) | H85 |
| Weight (kg) | ~150kg |
| Certifications | CE, RoHS, UN38.3 |
